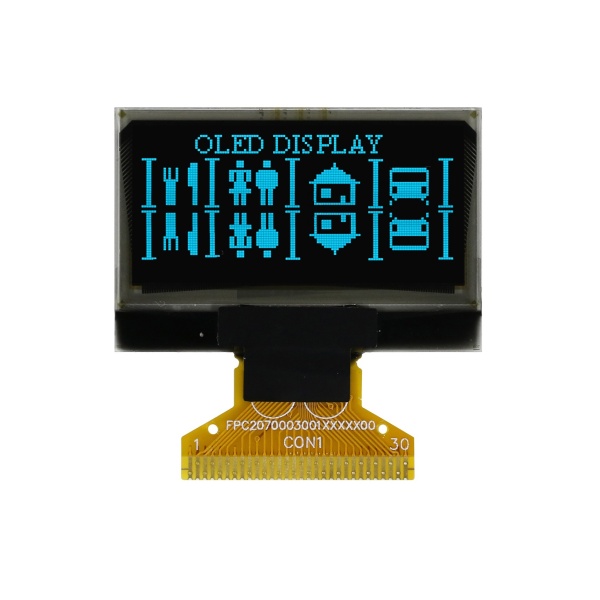

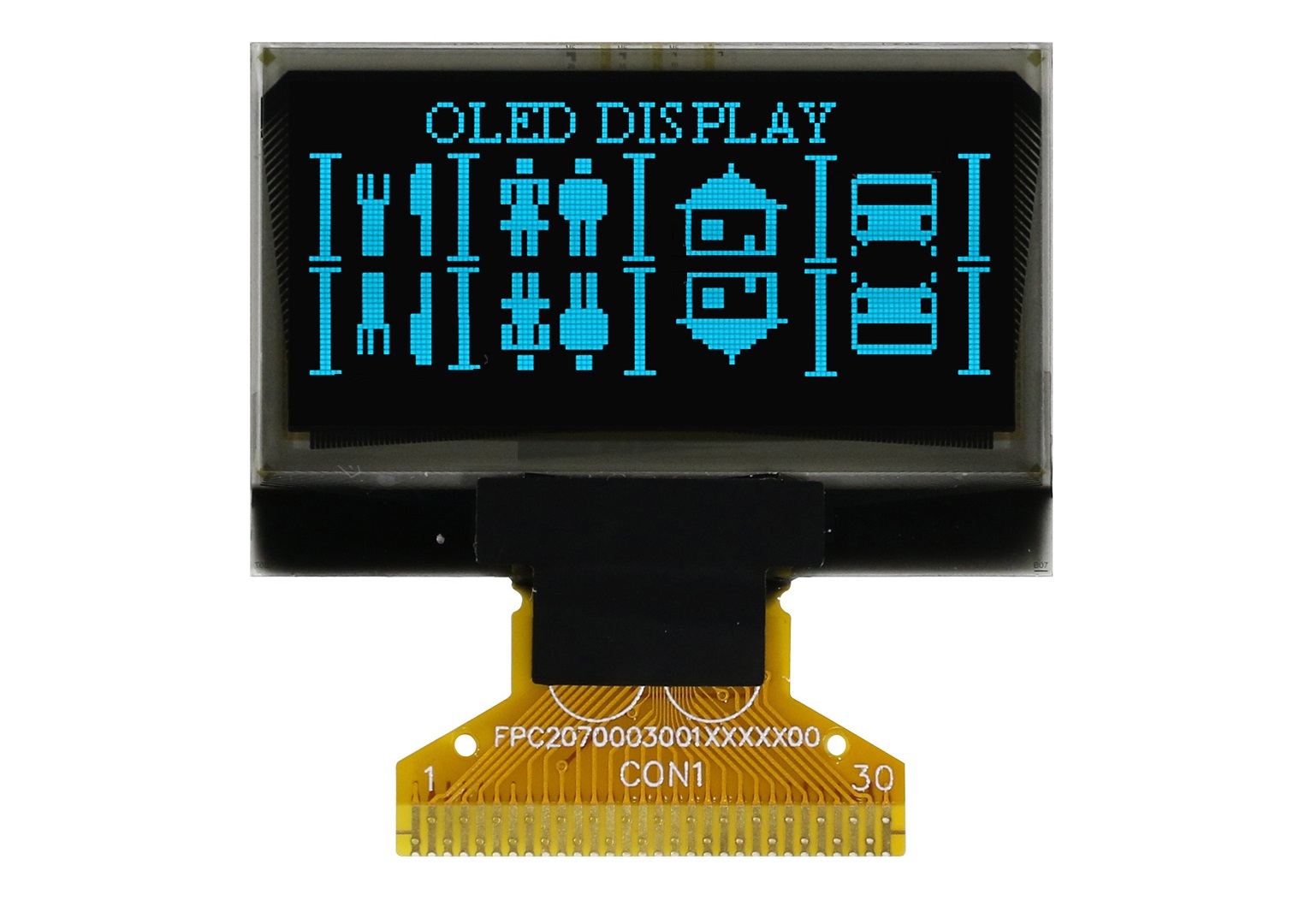

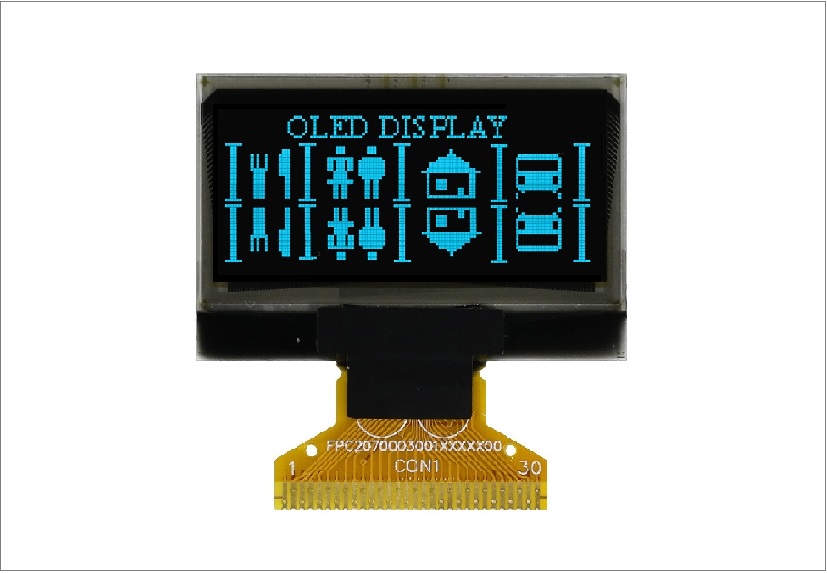

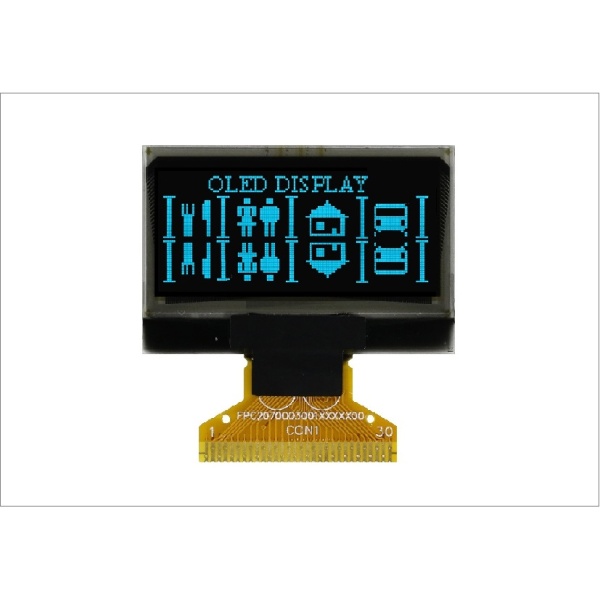

NL013GN001ML

PMOLED 1.3” Graphic 128×64, Light Blue color, COG, 3V, Interface 6800,8080,SPI,I2C, IC CH1106 IC

SKU: NL013GN001ML Category: OLED DISPLAY

Additional information

Colour Type	Mono
Technology	PMOLED
Resolution	128×64
Shape	Rectangular
Interface	Parallel/SPI/I2C
IC	CH1116
Interface Connector	FFC/Soldering
View Angle	Wide
Brightness Range	Up to 399 cd/m2
Touch Panel	None
Operating Temperature (°C)	-40°C + 85°C

Description

Downloads

NL013GN001ML Specs

1 file(s) 3.02 MB

Download

Customization

There are a lot of different options of semi-customization:

– Resolution
– Touch panel and optical films
– Frame
– Connectors

For more information about the technology please contact technical@nextvisiondisplay.com
