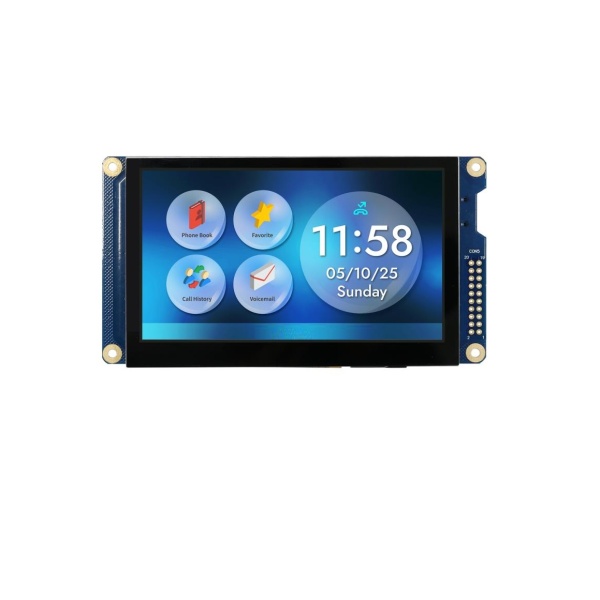

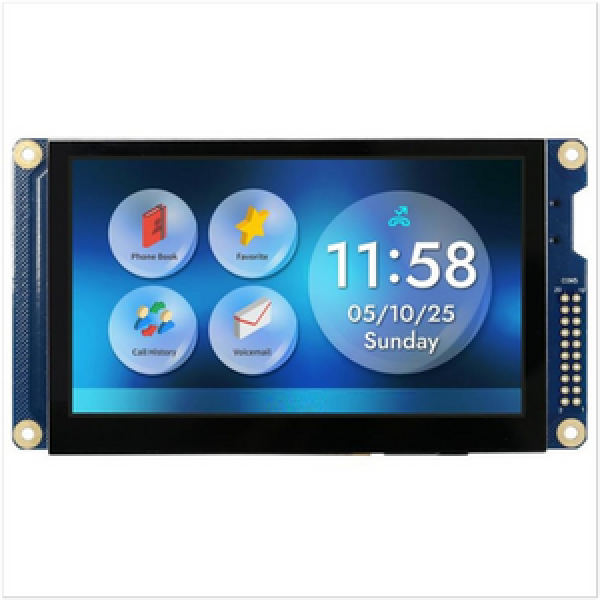

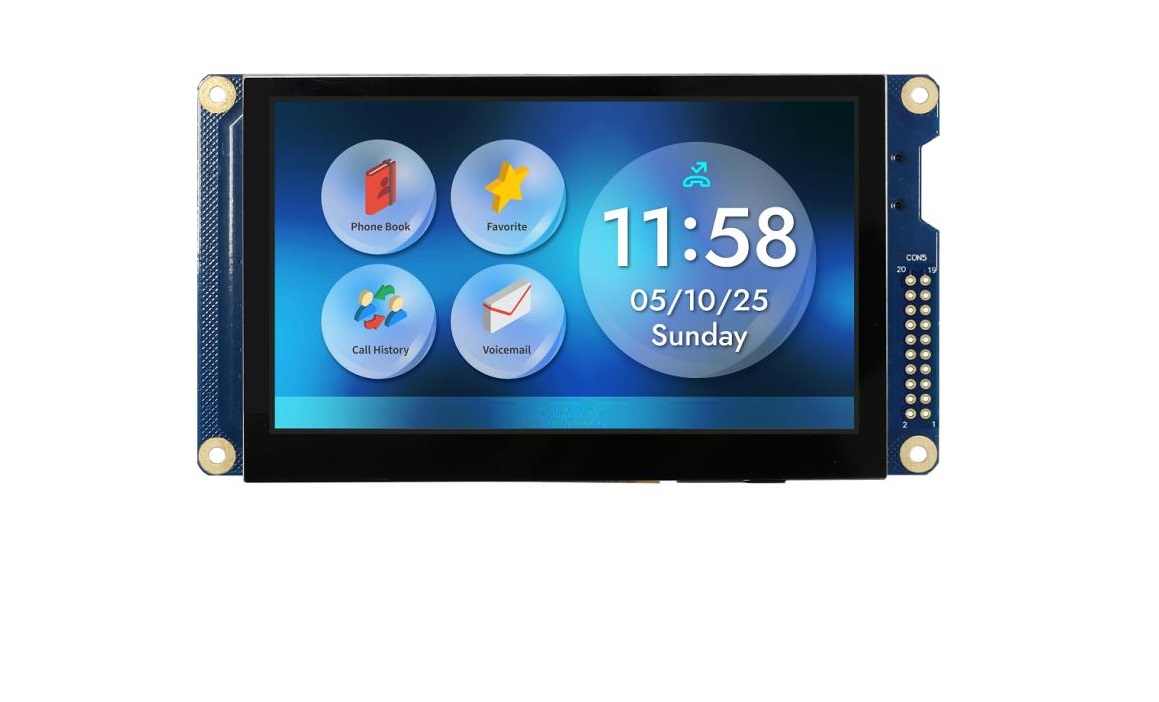

NT043-C003WS

TFT 4.3”, 480×272, Full Color, MCU (SPI), IPS, 400 cd/m2, CTP, Standard Temp.

SKU: NT043-C003WS Category: TFT DISPLAY

Additional information

Colour Type	Full Color
Technology	TFT Display
Size	4.3"
Resolution	480×272
Shape	Rectangular
Interface	MCU (SPI/QSPI)
IC	BT816
Interface Connector	Soldering PAD
View Angle	IPS
Brightness Range	400-699 cd/m2
Touch Panel	Capacitive
Operating Temperature (°C)	-20°C + 70°C

Description

Downloads

NT043-C003WS Specs

1 file(s) 1.17 MB

Download

Customization

There are a lot of different options of semi-customization:

– Resolution
– Touch panel and optical films
– Reduction of the TFT letterbox
– Frame
– Connectors
– LED Backlight

For more information about the technology please contact technical@nextvisiondisplay.com
