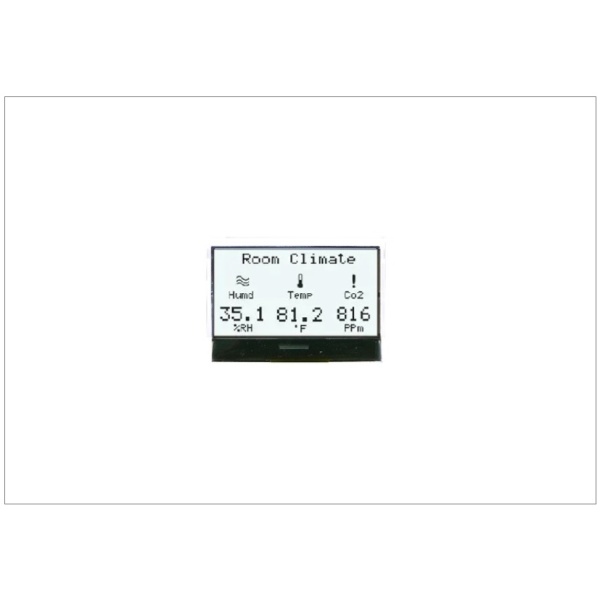

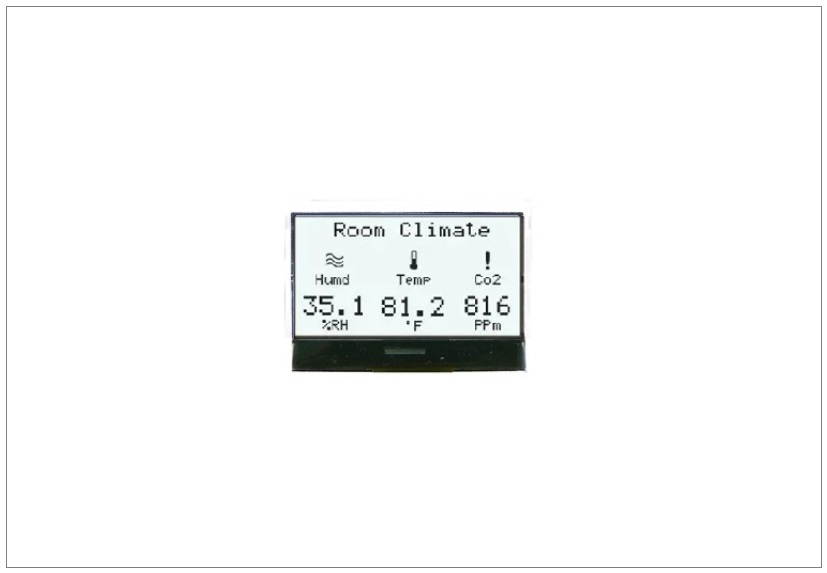

NG12864GN001SG

Graphic LCD 2.2” 128×64, COG, B/L white, FSTN white pos, SPI/Parallel(6800/8080), 6H, Standard Temp., No touch

SKU: NG12864GN001SG Category: MONO LCD DISPLAY

Additional information

Technology	Mono LCD
Size	2.2"
Resolution	128×64
Shape	Rectangular
Constructive Structure	COG
Color	B/L white, FSTN white pos
Polarizer	Transflective
Interface	SPI/Parallel(6800/8080)
V(LCD) Onboard	na
View Angle	6H
Operating Temperature (°C)	-20°C + 70°C
Display Connection	Pin Strip
Touch Panel	None
Frame	No

Description

Downloads

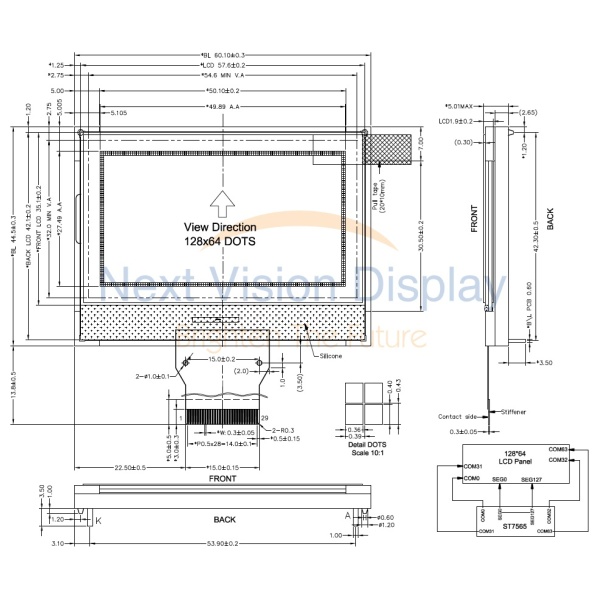

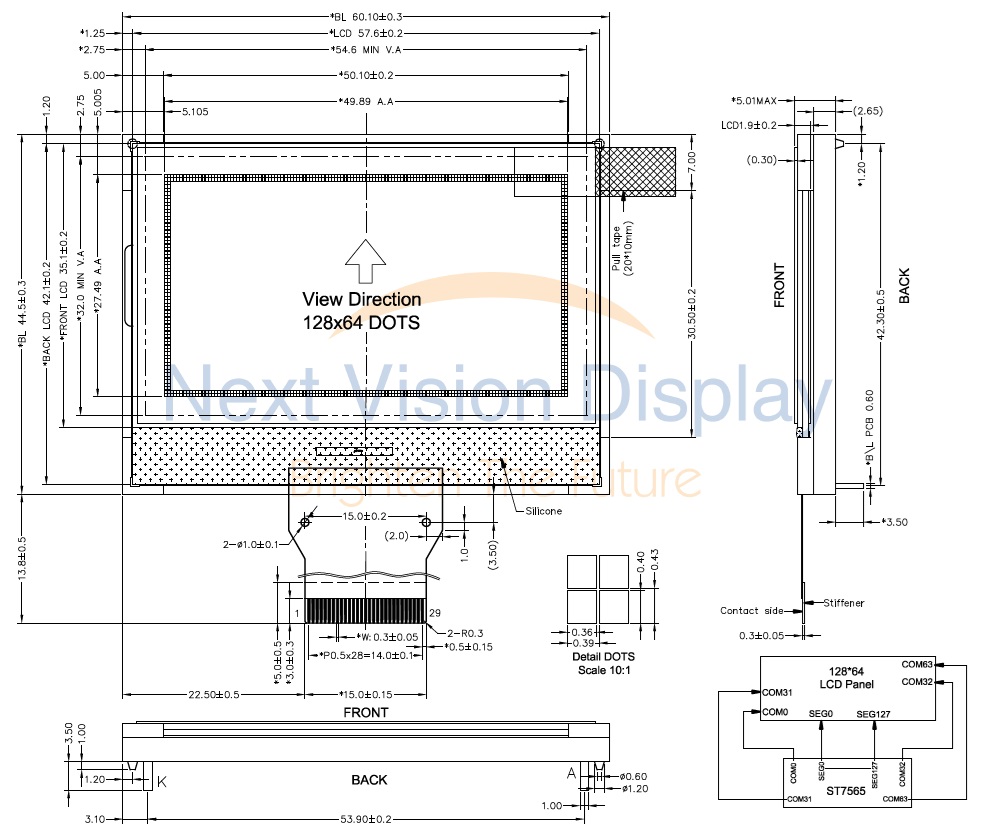

NG12864GN001SG Specs

1 file(s) 490 KB

Download

Customization

There are a lot of different options of semi-customization:

– Resolution
– Touch panel and optical films
– Frame
– Connectors

For more information about the technology please contact technical@nextvisiondisplay.com
