Touch Screen Displays for Electric Charge Stations

In the last year, the production of electric vehicle charge stations and columns throughout Italy increased by 81% from 10,647 to 19,324 units. Charge points and devices are increasingly user-friendly and user-machine-interface (both private and public) requires more and more attention. The visualization is increasingly oriented towards 3.5”~10.1” color TFT display with upgraded features and treatments:

  • High brightness (1200nits)
  • Optical bonding treatment forlight refraction decreases (read more below)
  • Surface treatment: AG (Anti-Glare Coating), AR (Anti-Reflection Coating)…
  • Cover glass customization (outline, shapes, thickness, screen printing…)
  • Ambient light sensor for automatic adjustment of LCD display backlighting
  • Wide view angle (IPS, VA technologies…)
  • Extended / extreme temperature (-40+85°C)
  • LCD glass Heater (transparent heater)
  • Treatments for using touch in harsh conditions (water resistant, glove sensitivity…)

Related Products:

 ☛ Size 3.5” (240×320~320x480pxls)
 ☛ Size 4.3′ (480×272~800x480pxls)
 ☛ Size 5.7′ (320×240~640x480pxls)
 ☛ Size 7” (800×480~1024x600pxls)
 ☛ Size 10.1” (800×600~1280x800pxls)

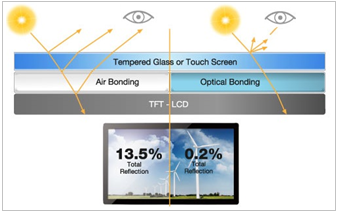

Optical Bonding Treatment

Optical bonding decreases light refraction and improves capacitive TFT readability. It is the process of insert a layer of resin (Liquid-OCR) or film (Dry-Bond Process OCA) between the touchs creens (or cover glass) and the LCD. Advantages:

• Greater robustness: filling of the gap provides high robustness and durability also in   harsh environments
• Dust & Moisture Protection: prevents dust and liquid ingress between the glass and LCD and prevents the creation of moisture condensation
• Better contrast ratio: improves image quality
• Better touch experience: maintains a more accurate touch response by eliminating air gap between the cover glass and the display

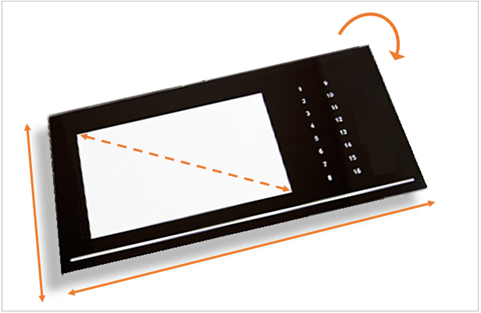

Cover Glass Customization for Capacitive Touch TFT

In addition to custom LCD, OLED and touch screen displays, we can develop customized Cover Glass to meet the aesthetic and functional requirements of each projects, giving you the possibility to customize:

  • Different sizes, thicknesses (up to 6mm) and shapes
  • Screen printing on glass
  • Glass treatments (anti-reflection, anti-scratch …)
  • Ambient light sensor for automatic adjustment of LCD display backlighting

From concept to production, our technical and sales team can support you.
