Designed to replace the popular STN LCD with the advanced TFT LCD

___

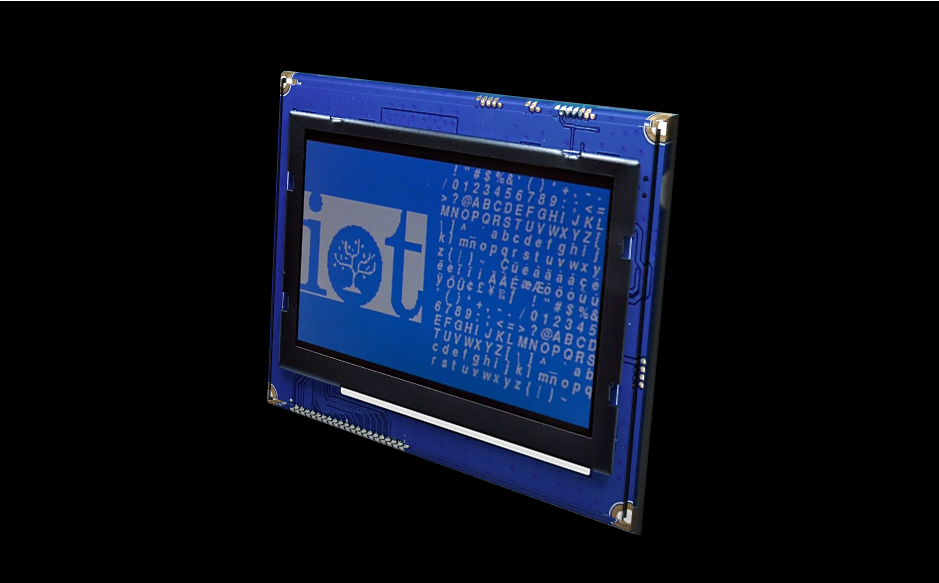

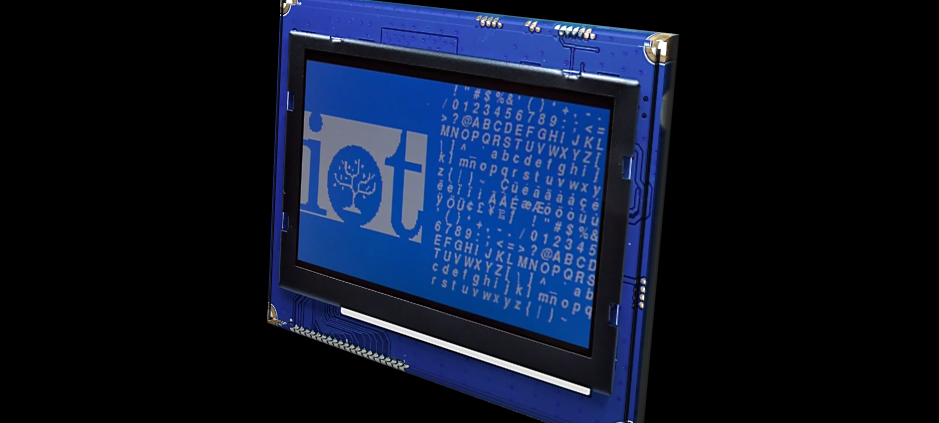

Signum Panel is designed to replace the popular STN (Super-Twisted Nematic) LCD with the more popular and advanced TFT LCD. STN has become a pricy commodity as worldwide supply dries up. The lead-time and MOQ (Minimum Order Quantity) requirement are edging up. These disadvantages have made STN LCD a less attractive technology choice. However, there are still popular and mature applications. The de facto standard products, 240×64 and 240×128 STN LCD, are still widely adopted in industrial, medical, and commercial applications. The goal of Signum Panel is to be a direct substitute for these STN products.

___

• Direct replacement for STN with T6963 interface and command sets
• Better visual quality with TFT LCD
• Support 32 combinations of foreground and background colors
• One SKU for all background and foreground color combinations
• Support customization of color schemes and font
• Support extension command set for displaying pictures and playing animation
• Support internal space for storing up to 100+ color pictures

___

___

For more information contact us at the email address: technical@nextvisiondisplay.com
